TERAVISION 4 Wire Video Intercom Solutions

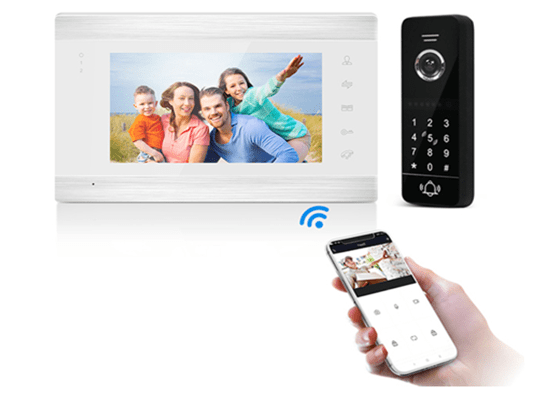

The latest addition to the Teravision product line up is the NEW Teravision AHD Smart powered by Terasmart 4 wire intercom system which incorporates a slim bodied, robust, door station with a stylish, sleek, high resolution room station.
4-wire AHD products are popular choices for residential solutions. In traditional homes, visitors knock or use the doorbell - and security is non-existent. Now, Teravisions' 4-Wire Video Intercom kit easily solves this problem, creating more security and serenity for your home.
Combination of Design and Utility

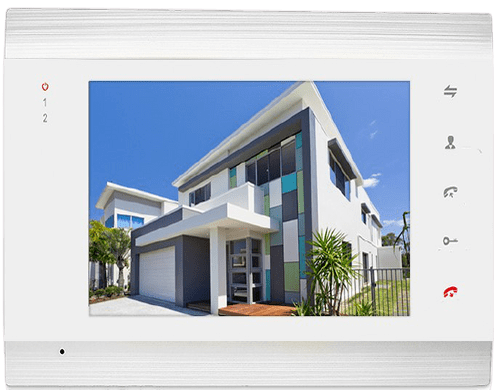

Teravision Terasmart 4 Wire AHD Intercom Smart Monitor
The indoor monitor consists of a 7" TFT LCD Display along with built-in Wi-Fi module. The monitor not only works standalone, but also has the ability to connect with 6 more indoor monitors, 2 outdoor stations, 2 CCTV Cameras and 2 Alarm sensors. The monitor has a multi-language functionality in the menu. The monitor also supports motion detection via SD Card.
7 inch LCD colour screen with touch sensor’s button.
Internal memory to store the snapshot ( 86 pictures, automatic cycle) ,and store the snapshots and videos store in 32GB SD Card.
Support” Leave Message” and ” Motion Detection ” SD Card required.
Specifications
| Monitor | 7" TFT LCD Video |
| Product Type | AHD (720P&960P)/CVBS Video Input |
| Resolution | 1024(H)*3(RGB)*600(V) |
| Memory | Support Max. 32GB SD card |
| Intercom Mode | Hands-free dual-way communication |
| Conversation duration | 120s |
| Wi-Fi frequency | 2.4Ghz |
| Network interface | 10M/100M self-adaption |
| IEEE standard | IEEE 802. 11b/g/n |
| Operation way | Touch button |
| Power Consumption | 400mA Max. |
| Power Supply | External power DC12V |
| Support | 2 Outdoor Station + 6 Indoor Monitor + 2 CCTV Camera & 2 Alarm |
| Material | Acrylic wire drawing shell |
| Operation Temperature | -10℃ +60℃ |
| Installation | Surface mount |
| Standard | PAL/NTSC |
| Compliance | CE, C-Tick, FCC, ROHS |

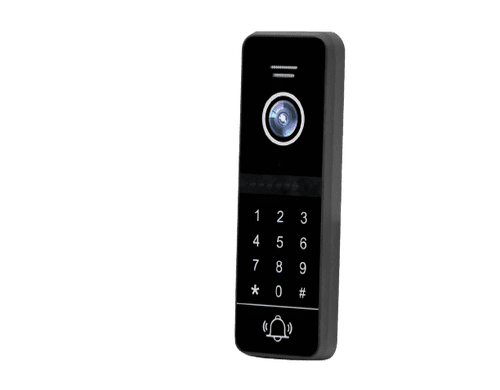

Teravision Outdoor Intercom Call Station with RFID & Keypad
The outdoor station provides communication between the visitor and the people inside the house. Clear identification of people in highly variable conditions. It has 1/2.7" colour CMOS camera which provides sharp resolution of 960P in colour with 2.2 mm lens for the camera.
RFID & Passcode unlock feature allows people to get access with the help of the RFID card details stored on the outdoor station
** The outdoor station must be connected to Teravision 4-wire monitor with Wi-Fi for Terasmart mobile app connectivity.
Specifications
| Camera Sensor | 1/2.7" CMOS, 1.3MP / 2.2 mm lens |
| View Angle | wide angle lens - 140° |
| Night vision | IR LED |
| Power Consumption | 200mA Max. |
| Power Supply | External DC 12V 1A |
| Material | Aluminium Alloy Panel |
| Waterproof | IP65 |
| Operation Temperature | -40℃ +50℃ |
| Unique Feature | RFID & Passcode Unlock |
| Installation | Surface Mount |
| Compliance | CE, C-Tick, FCC, ROHS |

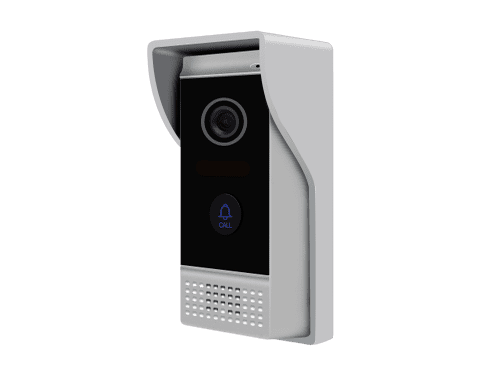

Teravision Outdoor Intercom Call Station
The outdoor station, with the plug-and-play function, doesn't need a separate power supply as the indoor monitor supplies power to the call station with a simple 4-wire connection. The outdoor station has 1/3" colour CMOS camera that provides sharp resolution of 960P in colour with 1.9mm lens camera. The monitor has a built-in motion detection feature to detect any person passing through.
- Built-in motion detection sensor and IR or LED clear night vision
- Leave Message Function Optional
- Aluminium alloy material with IP65 Waterproof
** The outdoor station must be connected to Teravision 4-wire monitor with Wi-Fi for Terasmart mobile app connectivity.
Specifications
| Camera Sensor | 1/3" CMOS, 1.3MP / 1.9 mm lens |
| View Angle | wide angle lens - 140° |
| Night vision | IR LEDs |
| Power Consumption | 200mA Max. |
| Material | Aluminium Alloy Panel |
| Waterproof | IP65 |
| Operation Temperature | -40℃ +50℃ |
| Unique Feature | With Rain cover |
| Installation | Surface mount |
| Compliance | CE, C-Tick, FCC, ROHS |

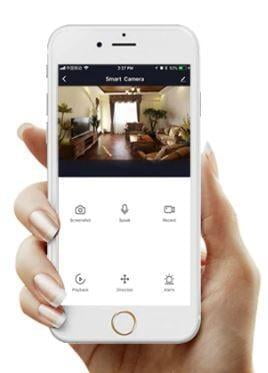

Terasmart Mobile App
Teravision video intercom powered by Terasmart allows you to view and speak to the visitor at your door even when you are outside the home via the TeraSmart Mobile app. Terasmart mobile app allows you to control multiple devices as well in the smart home environment.
** Available on Android and iOS
