CABLEMASTER factories are certified ISO9001:2008 and ISO14001:2004 manufacturers. In order to deliver quality products, every little detail counts. We pay attention throughout the whole production flow from performing incoming Quality Check on all incoming raw materials, to inspecting on every production phase by our QC team, to the final Outgoing Quality we employ sophisticated machineries in processes including copper rod drawing, thermoplastic compound mixing, physical dielectric foaming, high-speed braiding, multiple core assemble thermoplastic extrusion. Our team of knowledgeable technical engineer’s teamed with high-end testing equipment ensures our products are top-notch. We guarantee our products meet customer’s requirements by carrying out in-house physical tests such as ageing, bending, flame retarding, smoke density, water penetration, abrasion, extreme temperature, etc. For electrical requirements, our products are tested with a variety of equipment’s including an advanced Agilent Network Analyser E5071C (up to 8.5GHz) and Agilent Time-Domain Reflectometer 86100C. All of our products meet the EU RoHS and REACH environmental regulations since 2004. To ensure our products comply with Australian and NZ standards we use TUV Rheinland and SAA Approvals to independently test our cables.
The CABLEMASTER Team are fully committed to excellent service, quality product and competitive pricing we are able to achieve this through the long term relationships in our supply channel. Many were established in the early 1980’s.
Our Team
Our employment force is the backbone of CABLEMASTER, with dedicated working staff united to making CABLEMASTER a worldwide brand. From the on-site cable workers, knowledgeable engineers our experienced QC and procurement office in Taiwan to our local Australian sales team, we all work closely together to guarantee our product quality and service level exceeds your expectations.
Our Development
Contributing to worldwide cable industry for over 30 years, CABLEMASTER understands the importance of product development and value engineering. Therefore we devoted our resources greatly on advanced machineries and testing equipment’s to ensure we are always ahead of the fast pacing technology trend. Our qualified engineers are in close contact with experts around the world to identify market trends and product developments so that we can provide better value engineering consultation to our business partners

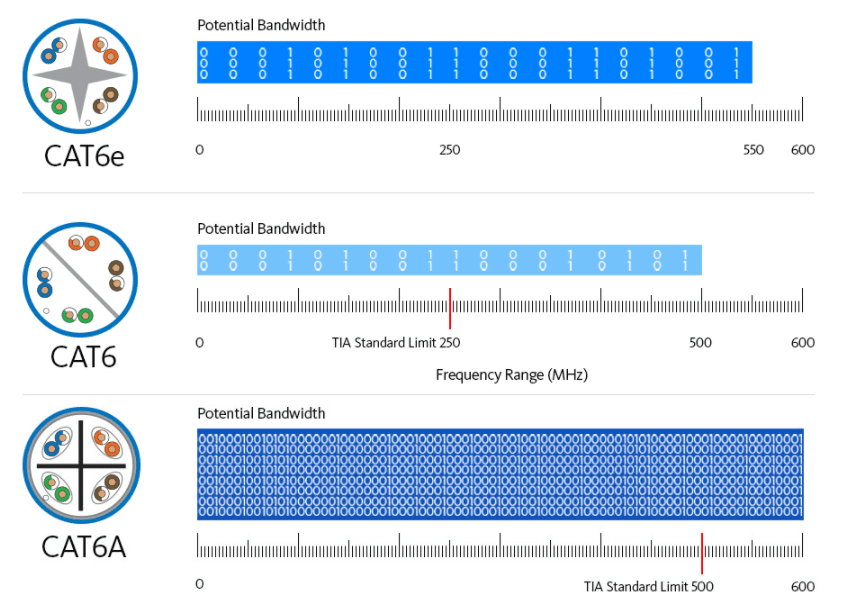

The Telecommunications Industry Association (TIA) introduced two performance standards; Category 6 (CAT6) and Category 6A (CAT6A). However, there is no CAT6e standard.
Common Usage | CAT6 | CAT6e | CAT6A |
Phone lines | ✔ | ✔ | x |
Home Network | ✔ | ✔ | x |
Office Network | ✔ | ✔ | ✔ |
Data Centre | x | ✔ | ✔ |
Features/Specs | |||
Potential Bandwidth | 1GB | 1GB | 10GB |
Time to Transfer 1TB | 3 hours | 3 hours | 20 minutes |
Data Transmission | 1000 BASE-TX | Exceeds 1000 BASE-TX | 10GBASE-T |
Connector Type | RJ45 8P8C (for CAT6) | RJ45 (for CAT6) | RJ45 (for CAT6A) |
Frequency Range Minimum | 0 - 250 MHz | 0 - 250 MHz | 0 - 500 MHz |
Frequency Minimum | 500 MHz | 550 MHz | 600 MHz |
Performance Distance | 100 meters | 100 meters | 100 meters |
Alt. Distance | 10GB 50m | 10GB 50m |
CAT6
TIA’s CAT6 standard sets the bar for CAT6 cables and connectivity. The data transmission must perform above the TIA limit for up to 250MHz. The cable can extend up to 100 meters and transfer data at a maximum data rate of 1Gbps (1000-BASE-T).
CAT6e
CAT6A
Another version of the CAT6 standard is available; it is labelled as CAT6A and is considered an advancement of CAT6. TIA set the limit at 500MHz, which is double the CAT6 standard. The CAT6A cable can extend up to 100 meters and transfer data at a maximum data rate of 10Gbps (10GBASE-T).
